Product profile

1.1 General description

This is a type of heavy copper single sided aluminum PCB board at 1.2mm thick

for the application of high current and high temperature dissipation. The base

laminate is from ITEQ 9oz Copper. It's fabricated per IPC 6012 Class 2 using

supplied Gerber data. Each 20 panel boards are packed separately.

1.2 Features and benifits

A. Optimization combination of power circuit and control circuit,
B. Replace the fragile ceramic substrate and obtain a better mechanical durability,
C. Effective heat diffusion in the design of the circuit,
D. Reduce the operating temperature of the equipment,
E. Improve the power density and reliability of the device,
F. Prolong the service life of the product,
G. High voltage test, Impedance control test, micro-section, solder-ability test,
H. Strict WIP inspection and monitoring as well as working instruction,
I. Right manufacturing instruction (MI),
J. Great customer service
K. UL conformed
L. Professional and experienced engineers

1.3 Application

Industrial and mining lamps,Automotive ignitor,Security system,audio amplifier

1.4 Parameter and data sheet

1.5 Outline dimension Unit: mm

The Variety of PCBs

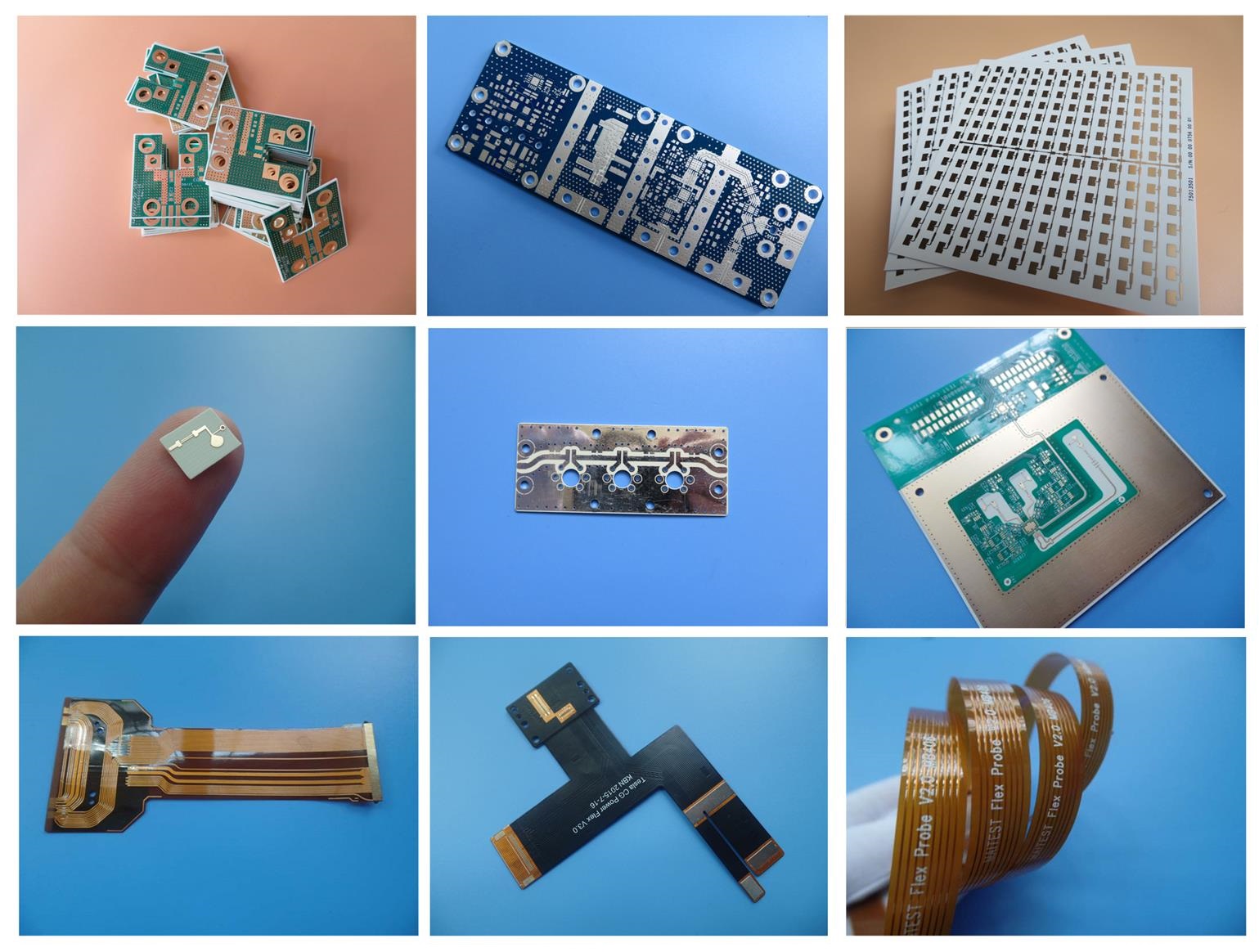

Bicheng PCB is headquartered in Shenzhen, a city with great economic vitality. Based in China, we adhere to the philosophy of servicing small and medium sized companies offering variety of circuit boards to meet the demands of market.

We maintain the highest standards which support products that exhibit exceptional quality, performance and reliability. The circuit board ranges from conventional FR-4 to PTFE, metal core to flexible circuits which are used in the industries of home appliances, portable and consumable electronics, medical filed, aerospace as well as telecommunications etc.
