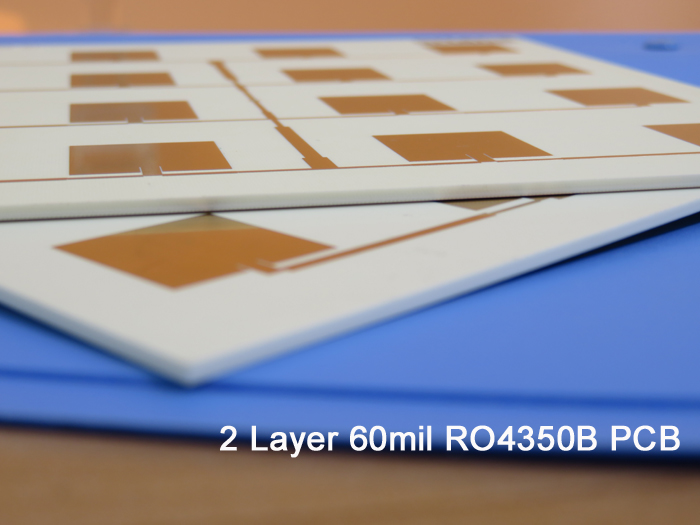

High Frequency PCB Rogers 60mil 1.524mm RO4350B Double Sided RF
Circuit Board Patch Antenna PCB
(Printed Circuit Boards are custom-made products, the picture and
parameters shown are just for reference)
RO4350B hydrocarbon ceramic laminates are designed to offer
superior high frequency performance and low cost circuit
fabrication. The selection of laminates typically available to
designers is significantly reduced once operational frequencies
increase to 500 MHz and above.
RO4350B material possesses the properties needed by designers of RF
microwave circuits and matching networks and controlled impedance
transmission lines. Low dielectric loss allows RO4350B material to
be used in many applications where higher operating frequencies
limit the use of conventional circuit board materials.
The temperature coefficient of dielectric constant is among the
lowest of any circuit board material, and the dielectric constant
is stable over a broad frequency range.
RO4350B material's thermal coefficient of expansion(CTE) provides
several key benefits to the PCB designers. The expansion
coefficient of RO4350B is similar to that of copper which allows
the material to exhibit excellent dimensional stability, a property
needed for mixed dielectric multi-layer boards constructions.
The low Z-axis CTE of RO4350B provides reliable plated through-hole
quality, even in severe thermal shock applications. RO4350B
material has a Tg of >280C so its expansion characteristics
remain stable over the entire range of PCB processing temperatures.
PCB Specifications
| PCB SIZE | 135 x 135mm=1PCS |
| BOARD TYPE | High frequency PCB, RF PCB |
| Number of Layers | Double sided PCB |
| Surface Mount Components | YES |
| Through Hole Components | YES |
| LAYER STACKUP | copper ------- 35um(1oz)+PLATE |
| RO4350B 60mil |
| copper ------- 35um(1oz)+PLATE |
| TECHNOLOGY | |
| Minimum Trace and Space: | 11mil/12mil |
| Minimum / Maximum Holes: | 0.3/2.2mm |
| Number of Different Holes: | 5 |
| Number of Drill Holes: | 184 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | NO |
| BOARD MATERIAL | |
| Glass Epoxy: | RO4350B 60mil, Tg 288℃ |
| Final foil external: | 1.5oz |
| Final foil internal: | 0oz |
| Final height of PCB: | 1.6mm ±0.16 |
| PLATING AND COATING | |
| Surface Finish | Electroless nickel over Immersion Gold (ENIG)( 2 micoinch over 100
microinch nickel) |
| Solder Mask Apply To: | NO |
| Solder Mask Color: | NO |
| Solder Mask Type: | N/A |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | NO |
| Colour of Component Legend | NO |
| Manufacturer Name or Logo: | N/A |
| VIA | Plated Through Hole(PTH) |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
Typical applications are as follows:
Automotive Radar and Sensors
Cellular Base Station Antennas
Direct Broadcast Satellites
Low Noise Block
Power amplifiers
RFID
Data sheet of Rogers 4350B (RO4350B )
| RO4350B Typical Value |
| Property | RO4350B | Direction | Units | Condition | Test Method |
| Dielectric Constant,εProcess | 3.48±0.05 | Z | | 10 GHz/23℃ | IPC-TM-650 2.5.5.5 Clamped Stripline |
| Dielectric Constant,εDesign | 3.66 | Z | | 8 to 40 GHz | Differential Phase Length Method |
| Dissipation Factortan,δ | 0.0037
0.0031 | Z | | 10 GHz/23℃
2.5 GHz/23℃ | IPC-TM-650 2.5.5.5 |
| Thermal Coefficient of ε | +50 | Z | ppm/℃ | -50℃to 150℃ | IPC-TM-650 2.5.5.5 |
| Volume Resistivity | 1.2 x 1010 | | MΩ.cm | COND A | IPC-TM-650 2.5.17.1 |
| Surface Resistivity | 5.7 x109 | | MΩ | COND A | IPC-TM-650 2.5.17.1 |
| Electrical Strength | 31.2(780) | Z | Kv/mm(v/mil) | 0.51mm(0.020") | IPC-TM-650 2.5.6.2 |
| Tensile Modulus | 16,767(2,432)
14,153(2,053) | X
Y | MPa(ksi) | RT | ASTM D 638 |
| Tensile Strength | 203(29.5)
130(18.9) | X
Y | MPa(ksi) | RT | ASTM D 638 |
| Flexural Strength | 255
(37) | | MPa
(kpsi) | | IPC-TM-650 2.4.4 |
| Dimensional Stability | <0.5 | X,Y | mm/m
(mil/inch) | after etch+E2/150℃ | IPC-TM-650 2.4.39A |
| Coefficient of Thermal Expansion | 10
12
32 | X
Y
Z | ppm/℃ | -55℃to288℃ | IPC-TM-650 2.4.41 |
| Tg | >280 | | ℃ TMA | A | IPC-TM-650 2.4.24.3 |
| Td | 390 | | ℃ TGA | | ASTM D 3850 |
| Thermal Conductivity | 0.69 | | W/M/oK | 80℃ | ASTM C518 |
| Moisture Absorption | 0.06 | | % | 48hrs immersion 0.060"
sample Temperature 50℃ | ASTM D 570 |
| Density | 1.86 | | gm/cm3 | 23℃ | ASTM D 792 |
| Copper Peel Stength | 0.88
(5.0) | | N/mm
(pli) | after solder float 1 oz.
EDC Foil | IPC-TM-650 2.4.8 |
| Flammability | (3)V-0 | | | | UL 94 |
| Lead-free Process Compatible | Yes | | | | |
