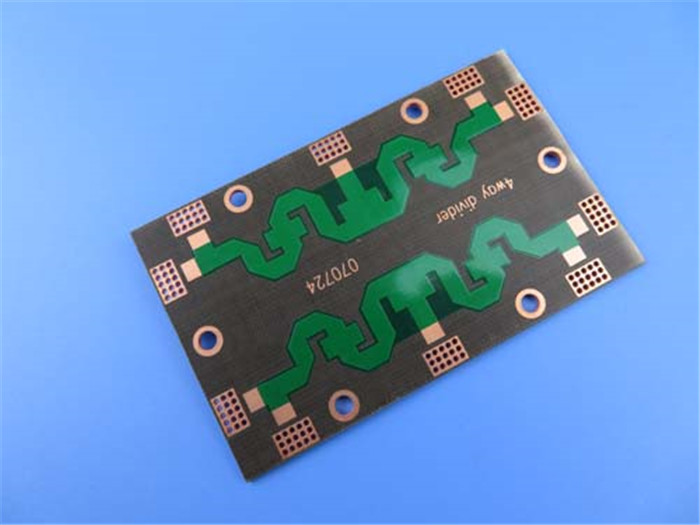

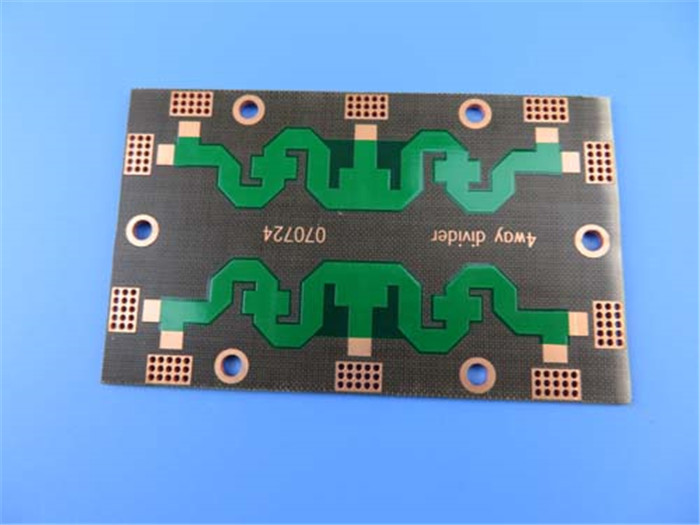

PTFE High Frequency PCB On DK2.65 Double Sided Cheap Teflon RF PCB for Combiners
(Printed Circuit Boards are custom-made products, the picture and
parameters shown are just for reference)
Polytetrafluoroethylene (Short for PTFE), commonly known as
"plastic king ", is a polymer compound made of tetrafluoroethylene
by polymerization. It has excellent chemical stability, corrosion
resistance, sealing, high lubrication and non-viscosity, electrical
insulation and good aging resistance. Used as engineering plastic,
it can be made into PTFE tube, rod, belt, plate, film and so on.
Generally it’s used in high performance requirements of
corrosion-resistant pipes, containers, pumps, valves as well as
radar, high-frequency communication equipment, radio equipment.
Polytetrafluoroethylene (F4,PTFE) has a series of excellent
performance:
1.high temperature resistance: long-term use temperature 200~260
degrees Celsius.
2.low temperature resistance: still soft at -100 degrees Celsius;
3.corrosion resistance: resistant aqua regia and all organic
solvents;
4.climate resistance: best aging life in plastics;
5.high lubrication: with the smallest friction coefficient in
plastics (0.04);
6.Non-viscous: with minimal surface tension in solid materials
without adhering to any substance;
7.non-toxic: with physiological inertness;
8.excellent electrical properties, ideal for C class of insulating
materials, a thick layer of stack of newspaper can block 1500 V of
high voltage;
9.smoother than ice.
F4BM-1/2 is laminated by laying up of varnished glass cloth with
Teflon resin, according to the scientific formulation and strict
technology process. This product takes some advantages over F4B series in the electrical performance(wider range of dielectric
constant,lower dielectric loss angle tangent,increased
resistance,and more stability of performance)
At RF and Microwave frequencies, the dielectric constant of PTFE
materials is as low as 3.5 or below, which keeps strong signal
during transmission across PCB, making them ideal for overcoming
the high speed limitation of FR-4.
Our PCB Capability
| PCB Material: | Fibre glass coated PTFE |
| Code: | F4BM-1/2 (family series) |
| Dielectric constant: | 2.2, 2.55, 2.65, 3.0 and 3.5 |
| Layer count: | 1 Layer, 2 Layers and multi-layer |
| Copper weight: | 0.5oz (17 µm), 1oz (35µm), 2oz (70µm), 3oz (105µm) |
| PCB thickness: | 0.25mm, 0.5mm, 0.8mm, 1.0mm, 1.5mm, 2.0mm, 3.0mm, 4.0mm, 5.0mm,
6.0mm, 8.0mm, 10.0mm, 12.0mm |
| PCB size: | ≤400mm X 500mm |
| Solder mask: | Green, Black, Blue, Yellow, Red etc. |
| Surface finish: | Bare copper, HASL, ENIG, Silver, OSP,etc. |
PCB Specifications
| PCB SIZE | 89 x 61mm=1PCS |
| BOARD TYPE | Microwave PCB |
| Number of Layers | Double sided PCB |
| Surface Mount Components | NO |
| Through Hole Components | YES |
| LAYER STACKUP | copper ------- 18um(0.5oz)+PLATE |
| PTFE 1.5mm |
| copper ------- 18um(0.5oz)+PLATE |
| TECHNOLOGY | |
| Minimum Trace and Space: | 6mil/9mil |
| Minimum / Maximum Holes: | 0.9/2.3mm |
| Number of Different Holes: | 3 |
| Number of Drill Holes: | 156 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 1 |
| Impedance Control | no |
| BOARD MATERIAL | |
| Glass Epoxy: | PTFE ER= 2.55 |
| Final foil external: | 1oz |
| Final foil internal: | 1oz |
| Final height of PCB: | 1.6 mm ±0.16 |
| PLATING AND COATING | |
| Surface Finish | OSP, Thickness >0.2µm |
| Solder Mask Apply To: | TOP, 12micron Minimum |
| Solder Mask Color: | Gloss Green, Taiyo PSR-2000GT600D |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | No silkscreen required. |
| Colour of Component Legend | No silkscreen required. |
| Manufacturer Name or Logo: | No silkscreen required. |
| VIA | Plated through hole(PTH), via open. |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" |
| Board plating: | 0.0029" |
| Drill tolerance: | 0.002" |
| TEST | 100% Electrical Test prior shipment |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
Electrical properties of F4B PTFE
