    Keypad PCB Hard Gold Circuit Board Built On Tg170 FR-4 With Green Solder Mask

    Ask Lasest Price
    Brand Name : Bicheng Technologies Limited
    Model Number : BIC-455-V9.96
    Certification : UL
    Price : USD 9.99-99.99
    Payment Terms : T/T / Paypal
    Supply Ability : 45000 pieces per month
    Delivery Time : 10 working days
    • Product Details
    • Company Profile

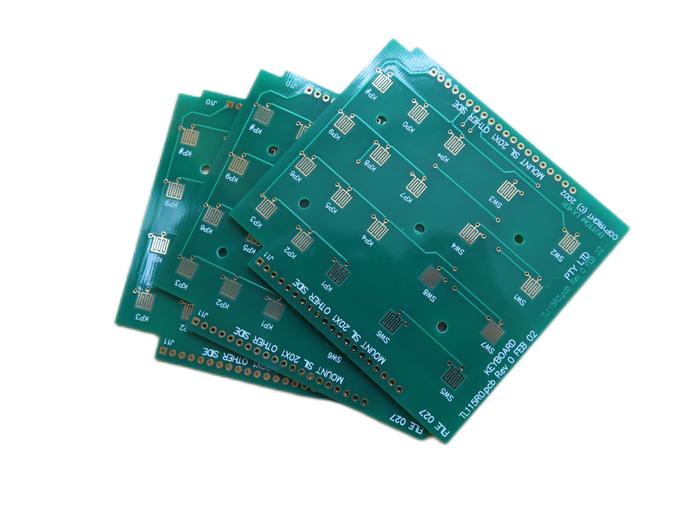

    Keypad PCB Hard Gold Circuit Board Built On Tg170 FR-4 With Green Solder Mask

    Keypad PCB Hard Gold Circuit Board Built On Tg170 FR-4 With Green Solder Mask

    (Printed circuits boards are custom-made products, the picture and parameters shown are just for reference)


    1.1 General description

    This is a type of double sided circuit board built on FR-4 substrate with Tg 170°C for the application of keypad. It's 1.6 mm thick with white silkscreen(Taiyo) on green solder mask (Taiyo) and hard gold on pads. The base material is from Shengyi supplying 1 up PCB per panel. They're fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 25 boards are packed for shipment.


    1.2 Features and benefits

    1. Industrial standard material with high Tg (170℃ by DSC) and excellent thermal reliability;

    2. Lead free assemblies with a maximum reflow temperature of 260℃;

    3. SMT process is resistant to reflow soldering, resistant to rework;

    4. Quick and on-time delivery;

    5. ISO9001, ISO14001, UL certified manufacturing factory;

    6. Competitive price;

    7. No quality complaint is meant to save money;

    8. Quick CADCAM checking and free PCB quotation.



    1.3 PCB Specifications

    ItemDescriptionRequirementActual
    Basic informationBoard typeDouble sided PCBDouble sided PCB
    Layer count2 layers2 layers
    Board size65 x 71mm=1UP65 x 71mm=1UP
    LaminateLaminate TypeFR4 TG≧170: CTI:175V-249VFR4 TG≧170: CTI:175V-249V
    Supplier//
    TgTG ≧170℃TG ≧170℃
    Finished thickness1.6+/-10% mm1.57 mm
    Plating ThicknessPTH Cu thickness>20 um22.13um
    Inner layer Cu Thickness1/1 OZ1/1 OZ
    Surface Cu thickness35 um45.1 um
    Solder MaskMaterial typeLP-4G G-05LP-4G G-05
    SupplierNan YaNan Ya
    ColorGreenGreen
    Single / both sidesBoth SidesBoth Sides
    S/M thickness>=10.0 um26.93 um
    3M tape testNO Peel Offno peel off
    LegendMaterial typeS-380WS-380w
    SupplierTai yoTai yo
    ColorWhiteWhite
    LocationBoth SidesBoth Sides
    3M tape testNo peel offno peel off
    CircuitTrace Width (mm)0.203+/-20%mm0.195mm
    Spacing (mm)0.203+/- 20%mm0.199 mm
    Electroplated GoldNickel100u"112u"
    Gold10u"11.11u"
    Reliabilty TestsThermal shock test288±5℃, 10sec ,3 cyclesNO Discolor , NO Delamination
    solder abllity test245±5℃100% wetting
    FunctionElectrioal Test100%pass
    StandardIPC-A 600H class 2, IPC_6012C CLASS 2100%Pass
    AppearanceVisual inspection100%Pass
    warp and twist<= 0.75%0.26%
    V-GrooveV-Cut thickness0.4±0.1 mm0.41mm
    Angle30+/- 530º
    Drill table (mm)T1PTH0.508+/-0.075mm
    T2PTH0.710+/-0.075mm
    T3NPTH5.000+/-0.05mm

    1.4 Applications

    Electric Motor

    Bluetooth PC

    DC To DC Converter

    GPS Chip

    USB Wlan Adapter

    Rf Transceiver

    AC To DC Inverter

    Controlled Access

    Multicoupler Combiner

    Fiber optic receptors


    1.5 Our PCB Capability (2022)

    ParameterValue
     Layer Counts 1-32
     Substrate MaterialRO4350B, RO4003C, RO4730G3, RO4360G2, RO4533, RO3003, RO3006, RO3010, RO3035, RO3203, RO3210; RT/Duriod 5880; RT/Duriod 5870, RT/Duriod 6002, RT/Duroid 6010, RT/duroid 6035HTC; TMM4, TMM10, Kappa 438; TLF-35; RF-35TC, RF-60A, RF-60TC, RF-35A2, RF-45, RF-10, TRF-45; TLX-0, TLX-6, TLX-7, TLX-8; TLX-9, TLY-3, TLY-5; PTFE F4B (DK2.2 DK2.65 DK2.85 DK2.94, DK3.0, DK3.2, DK3.38, DK3.5, DK4.0, DK4.4, DK6.15, DK10.2); AD450, AD600, AD1000, TC350; Nelco N4000, N9350, N9240; FR-4 ( High Tg S1000-2M, TU-872 SLK, TU-768, IT-180A etc.), FR-4 High CTI>600V; Polyimide, PET; Metal Core etc.
     Maximum Size Flying test: 900*600mm, Fixture test 460*380mm, No test 1100*600mm
     Board Outline Tolerance ±0.0059" (0.15mm)
     PCB Thickness0.0157" - 0.3937" (0.40mm--10.00mm)
    Thickness Tolerance(T≥0.8mm) ±8%
    Thickness Tolerance(t<0.8mm) ±10%
     Insulation Layer Thickness0.00295" - 0.1969" (0.075mm--5.00mm)
     Minimum Track0.003" (0.075mm)
     Minimum Space 0.003" (0.075mm)
     Outer Copper Thickness 35µm--420µm (1oz-12oz)
     Inner Copper Thickness 17µm--350µm (0.5oz - 10oz)
     Drill Hole(Mechanical)0.0059" - 0.25" (0.15mm--6.35mm)
     Finished Hole(Mechanical)0.0039"-0.248" (0.10mm--6.30mm)
    DiameterTolerance(Mechanical)0.00295" (0.075mm)
     Registration (Mechanical)0.00197" (0.05mm)
     Aspect Ratio 12:1
     Solder Mask Type LPI
     Min Soldermask Bridge0.00315" (0.08mm)
     Min Soldermask Clearance0.00197" (0.05mm)
     Plug via Diameter0.0098" - 0.0236" (0.25mm--0.60mm)
    Impedance Control Tolerance ±10%
     Surface FinishHASL,HASL LF,ENIG,Imm Tin,Imm Ag, OSP, Gold Finger
