6 Layers High Tg Printed Circuit Board (PCB) Made on S1000-2M With Immersion Gold and 90 Ohm Impedance Control for Commu

6 Layers High Tg Printed Circuit Board (PCB) Made on S1000-2M With Immersion Gold and 90 Ohm Impedance Control for Communications

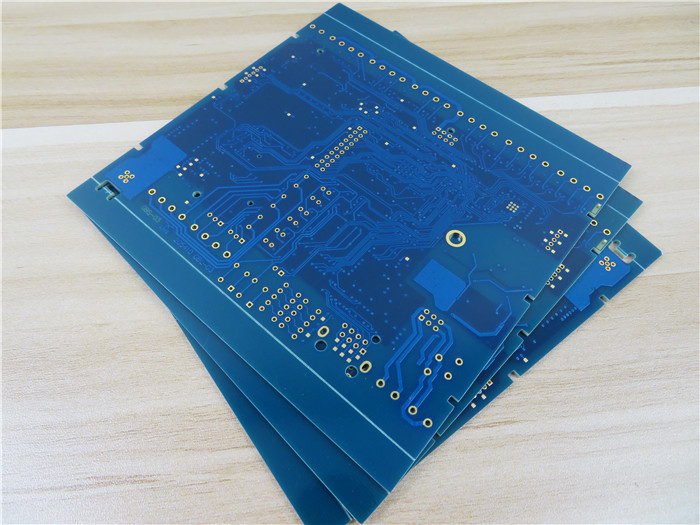

(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)

Brief Introduction

This is a type of high Tg PCB with differential impedance on layer 3 at 6mil/7mil, 6mil/10mil; and layer 4 at 7mil/7mil and 6mil/7mil track/gap. It is made on high performance and low CTE FR-4 S1000-2M (for more details about S1000-2M, please refer to Shengyi S1000-2M Core and S1000-2MB Prepreg High Tg Printed Circuit Board (PCB) 0.05mm-3.2mm Thick 12um-105um Copper). It’s 6-layer board with 1 oz copper each layer, coating with immersion gold and blue solder mask. It’s supplied by individual board with V-cut. 25 boards are packed for shipment.

Applications

Computers

Communications

Automotive electronics etc.

PCB Parameters

Item	Description	Requirement		Actual		Result
1. Laminate	Material Type	FR-4 S1000-2M		FR-4 S1000-2M		ACC
	Tg	170	℃	170	℃	ACC
	Supplier	SHENGYI		SHENGYI		ACC
	Thickness	1.6	±10% mm	1.63-1.68	mm	ACC
2.Plating thickness	Hole Wall	≥25	µm	30.17	µm	ACC
	Outer copper	35	µm	41.09	µm	ACC
	Inner Copper	30	µm	33.69	µm	ACC
3.Solder mask	Material Type	KSM-S6189BL04		KSM-S6189BL04		ACC
	Color	Blue		Blue		ACC
	Rigidity (Pencil Test)	≥4H or above		5H		ACC
	S/M Thickness	≥10	µm	20.11	µm	ACC
	Location	Both Sides		Both Sides		ACC
4. Component Mark	Material Type	TAIYO/ IJR-4000 MW300		IJR-4000 MW300		ACC
	Color	White		White		ACC
	Location	C/S		C/S		ACC
5. Peelable Solder Mask	Material Type
	Thickness
	Location
6. Identification	UL Mark	YES		YES		ACC
	Date Code	WWYY		0421		ACC
	Mark Location	Solder Side		Solder Side		ACC
7. Surface Finish	Method	Immersion Gold		Immersion Gold		ACC
	Tin Thickness
	Nickel Thickness	3-6	µm	4.06	µm	ACC
	Gold Thickness	0.1	µm	0.12	µm	ACC
8. Normativeness	RoHS	Directive 2015/863/EU		OK		ACC
	REACH	Directive 1907 /2006		OK		ACC
9.Annular Ring	Min. Line Width (mil)	6.00	mil	5.80	mil	ACC
	Min. Spacing (mil)	5.00	mil	5.20	mil	ACC
10.V-groove	Angle
	Residual thickness
11. Beveling	Angle
	Height
12. Function	Electrical Test	100% PASS		100% PASS		ACC
13. Appearance	IPC Class Level	IPC-A-600J &6012D Class 2		IPC-A-600J &6012D Class 2		ACC
	Visual Inspection	IPC-A-600J &6012D Class 2		IPC-A-600J &6012D Class 2		ACC
	Warp and Twist	≦	0.70%	0.21%		ACC
14. Reliability Test	Tape Test	No Peeling		OK		ACC
	Solvent Test	No Peeling		OK		ACC
	Solderability Test	265 ±5℃		OK		ACC
	Thermal Stress Test	288 ±5℃		OK		ACC
	Ionic Contamination Test	≦ 1.56 µg/c㎡		0.56	µg/c㎡	ACC

Hole Diameter Measurement (Unit: mm),Tolerance: PTH±0.075; NPTH±0.05

Hole Code	PTH	Required	Actual value				Result
1	Y	0.375	0.375	0.400	0.400	0.375	ACC
2	Y	0.500	0.500	0.550	0.525	0.525	ACC
3	Y	0.7*2.4	0.7*2.4	0.7*2.41	0.69*2.4	0.7*2.4	ACC
4	Y	0.625	0.625	0.600	0.625	0.600	ACC
5	Y	0.725	0.725	0.725	0.750	0.725	ACC
6	Y	0.900	0.925	0.900	0.900	0.900	ACC
7	Y	1.000	1.000	0.950	0.975	1.000	ACC
8	N	1.050	1.050	1.050	1.075	1.050	ACC
9	Y	1.300	1.300	1.300	1.325	1.325	ACC
10	Y	1.350	1.350	1.325	1.350	1.325	ACC
11	Y	1.575	1.575	1.600	1.600	1.575	ACC
12	Y	1.650	1.650	1.700	1.675	1.675	ACC
13	Y	1.700	1.700	1.750	1.725	1.725	ACC
14	Y	3.250	3.250	3.250	3.275	3.250	ACC
15	Y	3.450	3.450	3.400	3.425	3.450	ACC
16	Y	0.7*2.6	0.7*259	0.7*2.61	0.69*2.6	0.7*2.59	ACC

Electrical Test Report

Test Type	Flying Probe	Testing Points	1250	Testing Time	1/25/2021	Quantity	80	Pieces
Testing Condition	Voltage	250V		Conductive Resistance		20 Ω
	Current	100 mA		Isulation Resistance		20 mΩ
Testing Result	Quantity Passed	80	Pieces	Passing Rate		100%
	Quantity Rejected	0	Pieces
	Open Circuits	0	Pieces	Short Circuits		0		Pieces
	Conductive Non-confirming	0	Pieces	Insulation Non-confirming		0		Pieces

Impedance Test Report

Sample NO.	Layer	Line Width(mil)±10%	Line Space (mil)±10%	Impedance Type		Required Value (ohm)	Tolerance	Actual Value	Result
Sample NO.	Layer	Line Width(mil)±10%	Line Space (mil)±10%	Single End	Differential	Required Value (ohm)	Tolerance	Actual Value	Result
1	L3	6.000	7.000		V	90.00	±10%	93.59	ACC
	L3	6.000	10.000		V	100.00	±10%	102.33	ACC
	L4	7.000	7.000		V	90.00	±10%	88.99	ACC
	L4	6.000	7.000		V	90.00	±10%	90.76	ACC
