F4BME High Frequency PCB
Introduction
Wangling’s F4BME high frequency materials are PTFE glass fiber
cloth copper clad laminates that combine glass fiber cloth, PTFE
resin, and PTFE film through a meticulous manufacturing process.
These series laminates offer improved electrical performance
compared to F4B due to their wider range of dielectric constants,
low dielectric loss, increased insulation resistance, and enhanced
stability. Consequently, they can serve as replacements for similar
foreign products.
F4BME and F4BM share the same dielectric layer, the copper foil
used differs between them. F4BME utilizes reversed treated foil
(RTF), which offers excellent PIM performance, precise line
control, and lower conductor loss.
Features
You have the freedom to select from a diverse range of dielectric
constant options, ranging from 2.17 to 3.0. The dissipation factor
is within the range of 0.001 to 0.0018. There is a wide array of
thickness options available to meet your specific needs, and the
variety of sizes offered enables cost savings. These features
collectively make it highly suitable for commercial applications,
large-scale production, and cost-effective solutions.

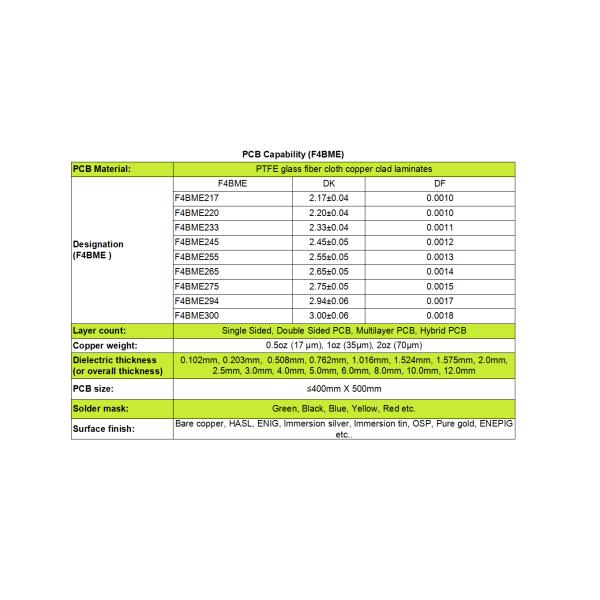

PCB Capability
We possess a comprehensive range of PCB manufacturing capabilities
that encompass various aspects.
To meet your specific requirements, we can provide Single Sided,
Double Sided, Multilayer, and Hybrid PCBs. You have the flexibility
to choose between copper weights of 1oz (35µm) and 2oz (70µm) for
your needs.
Moreover, we offer a diverse selection of dielectric thickness
options, ranging from 0.8mm to 12.0mm, including precise
measurements like 1.524mm and 1.575mm.
Our capabilities extend to accommodating PCB sizes up to 400mm X
500mm, ensuring that we can meet your size specifications. In terms
of customization, we provide a range of solder mask colors, such as
Green, Black, Blue, Yellow, Red, and more, allowing you to
personalize the appearance of your PCBs.
Additionally, we offer multiple surface finish options, including
Bare copper, HASL, ENIG, Immersion silver, Immersion tin, OSP, Pure
gold and ENEPIG etc.
Applications
The F4BME PCB has a diverse range of applications, including but
not limited to phase shifters, passive devices, power dividers,
couplers, combiners, feed networks, phased array antennas,
satellite communications, base station antennas, and radar systems.
