Double-Sided PCB with TP450, 2.6mm Thickness, ENIG Finish for
High-Frequency Applications

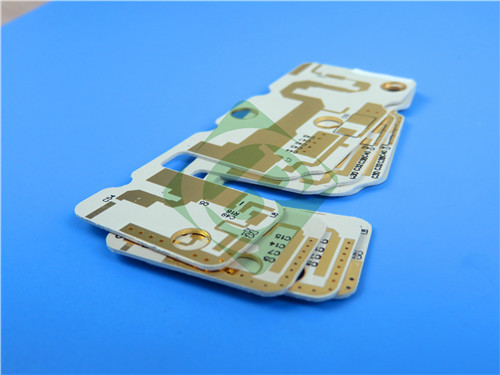

(All PCBs are custom-manufactured. Reference images and parameters
may vary based on your design requirements.)
1. Overview of the Double-Sided PCB
Our double-sided PCB is built with TP450, a unique thermoplastic
material that combines ceramic fillers and polyphenylene oxide
resin (PPO) for superior dielectric performance. With a 4.5
dielectric constant (Dk) and low dissipation factor (Df) of 0.0010
at 10 GHz, this PCB ensures signal integrity and minimal signal
loss, even in demanding environments.
The ENIG surface finish enhances solderability and provides
excellent corrosion resistance, while the 2-layer rigid design
ensures structural stability. Although this PCB does not include
solder masks or silkscreens, it is manufactured with 100%
electrical testing to ensure performance and compliance with
IPC-Class-2 standards.
2. PCB Construction Details
| Parameter | Specification |
| Base Material | TP450 |
| Layer Count | Double-sided |
| Board Dimensions | 121mm x 125mm ± 0.15mm |
| Minimum Trace/Space | 6/4 mils |
| Minimum Hole Size | 0.5mm |
| Via Type | No Blind Vias |
| Finished Board Thickness | 2.6mm |
| Finished Copper Weight | 1oz (1.4 mils) outer layers |
| Via Plating Thickness | 20 μm |
| Surface Finish | Electroless Nickel Immersion Gold (ENIG) |
| Top Solder Mask | None |
| Bottom Solder Mask | None |
| Top Silkscreen | None |
| Bottom Silkscreen | None |
| Electrical Testing | 100% tested to IPC-Class-2 standards |
3. PCB Stackup
The 2-layer rigid PCB stackup is straightforward yet effective for
high-frequency designs. The stackup structure is as follows:
| Layer | Material | Thickness |
| Copper Layer 1 | Copper (1oz) | 35 μm |
| Core Material | TP450 | 2.54mm (100mil) |
| Copper Layer 2 | Copper (1oz) | 35 μm |
4. Features of TP450 Material
- Dielectric Constant (Dk): 4.5 ± 0.2 at 10 GHz, ensuring stable
signal transmission.
- Dissipation Factor (Df): 0.0010 at 10 GHz for minimal signal loss.
- Thermal Stability: Low TCDk: -50 ppm/°C, ensuring stable dielectric
performance over temperature changes.
- CTE: X-axis: 50 ppm/°C. Y-axis: 50 ppm/°C. Z-axis: 60 ppm/°C.
- Excellent reliability over a wide temperature range (-55°C to
150°C).
- Moisture Absorption: 0.01%, ensuring consistent performance in
humid environments.
- Flammability Rating: UL 94 V-0 for enhanced safety.
- Thermal Conductivity: 0.44 W/mK, providing effective heat
dissipation.
5. Benefits of TP450 Material
- Low Dielectric Loss: Ensures high signal integrity for RF and microwave applications.
- Thermal and Mechanical Reliability: With excellent CTE and thermal conductivity, it performs well in
extreme environments, including space and defense applications.
- Stable Dielectric Constant: The Dk is tightly controlled and remains consistent across a wide
temperature range, making it suitable for precision applications.
- Moisture Resistance: Low moisture absorption ensures consistent performance in humid or
marine environments.
- Cost-Effective Manufacturing: The material is compatible with standard PCB processes, reducing
production costs without compromising quality.
6. Applications of the Double-Sided PCB
Global Satellite Navigation Systems: Used in high-precision satellite communication and navigation
devices.
Missile-Borne Applications: Ensures reliability in extreme environments with high vibration and
thermal stress.
Miniaturized Antennas: Perfect for compact, high-performance RF antenna designs.
Fuze Technology: Ideal for sensitive and precision-guided systems.
The TP450-based double-sided PCB delivers excellent performance for
critical RF and microwave systems, making it a reliable choice for
advanced applications.
Why Choose Bicheng Technologies?
At Bicheng Technologies Limited, we specialize in designing and
manufacturing high-quality PCBs for RF and microwave applications.
Our double-sided PCB with TP450 material is manufactured to the
highest standards, offering exceptional performance, reliability,
and value.
Why Work With Us?
Global Reach: We deliver worldwide, ensuring timely support for
your projects.
Quality Assurance: All PCBs are tested to IPC-Class-2 standards for
guaranteed reliability.
Customer Support: We provide tailored solutions to meet your
specific project requirements.
If you’re looking for a trusted partner for your next
high-frequency project, feel free to contact Sally at sales30@bichengpcb.com. Let’s work together to bring your innovative designs to life.
